Linux中断子系统（二）中断控制器GIC驱动分析

备注：
1. Kernel版本：5.4
2. 使用工具：Source Insight 4.0
3. 参考博客：
Linux中断子系统（一）中断控制器及驱动分析
吐血整理|肝翻Linux中断所有知识点
linux kernel的中断子系统之（七）：GIC代码分析

文章目录

Linux中断子系统（二）中断控制器GIC驱动分析
- 设备信息添加
- 驱动流程分析
- irq chip driver的声明
- gic_of_init函数分析
- 数据结构分析
- irq domain浅析
- - 注册irq_domain
  - - 线性映射（line map）
    - 树状映射（tree map）
    - no map
  - 创建irq_domain映射
- gic创建irq_domain
- gic创建irq_chip

设备信息添加

ARM平台的设备信息，都是通过Device Tree设备树来添加，下面就是一个中断控制器的设备树信息：

		gic: interrupt-controller@b0001000{compatible = "arm,gic-400", "arm,cortex-a7-gic";reg = <0xb0001000 0x1000>, /* GICD */<0xb0002000 0x1000>; /* GICC */interrupt-controller;#interrupt-cells = <3>;interrupts = <GIC_PPI 9 (GIC_CPU_MASK_SIMPLE(4) | IRQ_TYPE_LEVEL_HIGH)>;};

字段解析：

compatible字段：用于与具体的驱动来进行匹配，比如示例中“arm, gic-400”，可以根据这个名字去匹配对应的驱动程序；
reg字段：描述中断控制器的地址信息以及地址范围，比如示例中分别制定了GIC Distributor（GICD）和GIC CPU Interface（GICC）的地址信息；
interrupt-controller字段：表示该设备是一个中断控制器，外设可以连接在该中断控制器上；
interrupt-cells字段：用于指定编码一个中断源所需要的单元个数，这个值为3。比如在外设在设备树中添加中断信号时，通常能看到类似interrupts = <0 23 4>;的信息，第一个单元0，表示的是中断类型（1：PPI，0：SPI），第二个单元23表示的是中断号，第三个单元4表示的是中断触发的类型；
interrupts：分别代表中断类型，中断号，中断类型， PPI中断亲和，保留字段。

注：关于设备数的各个字段含义，详细可以参考Documentation/devicetree/bindings下的对应信息；

设备树的信息，添加到系统中的：
请添加图片描述

驱动流程分析

GIC驱动的执行流程如下图所示：
请添加图片描述

首先需要了解一下链接脚本vmlinux.lds，脚本中定义了一个__irqchip_of_table段，该段用于存放中断控制器信息，用于最终来匹配设备；
在GIC驱动程序中，使用IRQCHIP_DECLARE宏来声明结构信息，包括compatible字段和回调函数，该宏会将这个结构放置到__irqchip_of_table字段中；
在内核启动初始化中断的函数中，of_irq_init函数会去查找设备节点信息，该函数的传入参数就是__irqchip_of_table段，由于IRQCHIP_DECLARE已经将信息填充好了，of_irq_init函数会根据arm,gic-400去查找对应的设备节点，并获取设备的信息。中断控制器也存在级联的情况，of_irq_init函数中也处理了这种情况；
or_irq_init函数中，最终会回调IRQCHIP_DECLARE声明的回调函数，也就是gic_of_init，而这个函数就是GIC驱动的初始化入口函数了；
GIC的工作，本质上是由中断信号来驱动，因此驱动本身的工作就是完成各类信息的初始化，注册好相应的回调函数，以便能在信号到来之时去执行；
set_smp_process_call设置__smp_cross_call函数指向gic_raise_softirq，本质上就是通过软件来触发GIC的SGI中断，用于核间交互；
cpuhp_setup_state_nocalls函数，设置好CPU进行热插拔时GIC的回调函数，以便在CPU热插拔时做相应处理；
set_handle_irq函数的设置很关键，它将全局函数指针handle_arch_irq指向了gic_handle_irq，而处理器在进入中断异常时，会跳转到handle_arch_irq执行，所以，可以认为它就是中断处理的入口函数了；
驱动中完成了各类函数的注册，此外还完成了irq_chip, irq_domain等结构体的初始化，这些结构在下文会进一步分析；
最后，完成GIC硬件模块的初始化设置，以及电源管理相关的注册等工作；
注：以上内容来自博客：https://www.cnblogs.com/LoyenWang/p/12996812.html

irq chip driver的声明

源码：driver/irqchip/irq-gic.c

IRQCHIP_DECLARE(gic_400, "arm,gic-400", gic_of_init);
IRQCHIP_DECLARE(cortex_a7_gic, "arm,cortex-a7-gic", gic_of_init);

定义 IRQCHIP_DECLARE 之后，相应的内容会保存到 __irqchip_of_table 里边:

#define IRQCHIP_DECLARE(name, compat, fn) OF_DECLARE_2(irqchip, name, compat, fn)#define OF_DECLARE_2(table, name, compat, fn) \_OF_DECLARE(table, name, compat, fn, of_init_fn_2)#define _OF_DECLARE(table, name, compat, fn, fn_type)			\static const struct of_device_id __of_table_##name		\__used __section(__##table##_of_table)			\__aligned(__alignof__(struct of_device_id))		\= { .compatible = compat,				\.data = (fn == (fn_type)NULL) ? fn : fn  }

__irqchip_of_table 在链接脚本 vmlinux.lds 里，被放到了 __irqchip_begin 和 __irqchip_of_end 之间，该段用于存放中断控制器信息：

#ifdef CONFIG_IRQCHIP    #define IRQCHIP_OF_MATCH_TABLE()                    \. = ALIGN(8);                           \VMLINUX_SYMBOL(__irqchip_begin) = .;                \*(__irqchip_of_table)                       \*(__irqchip_of_end)#endif

在内核启动初始化中断的函数中，of_irq_init 函数会去查找设备节点信息，该函数的传入参数就是 __irqchip_of_table 段，由于 IRQCHIP_DECLARE 已经将信息填充好了，of_irq_init 函数会根据 “arm,gic-400” 去查找对应的设备节点，并获取设备的信息。or_irq_init 函数中，最终会回调 IRQCHIP_DECLARE 声明的回调函数，也就是 gic_of_init，而这个函数就是 GIC 驱动的初始化入口。

gic_of_init函数分析

源码：driver/irqchip/irq-gic.c

int __init
gic_of_init(struct device_node *node, struct device_node *parent)
{struct gic_chip_data *gic;int irq, ret;if (WARN_ON(!node))return -ENODEV;if (WARN_ON(gic_cnt >= CONFIG_ARM_GIC_MAX_NR))return -EINVAL;gic = &gic_data[gic_cnt];ret = gic_of_setup(gic, node);//映射GICD、GICC地址空间if (ret)return ret;/** Disable split EOI/Deactivate if either HYP is not available* or the CPU interface is too small.*/if (gic_cnt == 0 && !gic_check_eoimode(node, &gic->raw_cpu_base))static_branch_disable(&supports_deactivate_key);//创建irq_domain，初始化distributor、cpu interface等ret = __gic_init_bases(gic, &node->fwnode);if (ret) {gic_teardown(gic);return ret;}if (!gic_cnt) {gic_init_physaddr(node);gic_of_setup_kvm_info(node);}//中断映射if (parent) {irq = irq_of_parse_and_map(node, 0);gic_cascade_irq(gic_cnt, irq);}if (IS_ENABLED(CONFIG_ARM_GIC_V2M))gicv2m_init(&node->fwnode, gic_data[gic_cnt].domain);gic_cnt++;return 0;
}

gic_of_setup函数分析：

static int gic_of_setup(struct gic_chip_data *gic, struct device_node *node)
{if (!gic || !node)return -EINVAL;gic->raw_dist_base = of_iomap(node, 0);//映射GIC distributor的寄存器地址空间if (WARN(!gic->raw_dist_base, "unable to map gic dist registers\n"))goto error;gic->raw_cpu_base = of_iomap(node, 1);//映射GIC cpu interface的寄存器地址空间if (WARN(!gic->raw_cpu_base, "unable to map gic cpu registers\n"))goto error;//SMP时，CPU interface offsetif (of_property_read_u32(node, "cpu-offset", &gic->percpu_offset))gic->percpu_offset = 0;return 0;error:gic_teardown(gic);return -ENOMEM;
}

__gic_init_bases函数分析：

static int __init __gic_init_bases(struct gic_chip_data *gic,struct fwnode_handle *handle)
{char *name;int i, ret;if (WARN_ON(!gic || gic->domain))return -EINVAL;if (gic == &gic_data[0]) {/** Initialize the CPU interface map to all CPUs.* It will be refined as each CPU probes its ID.* This is only necessary for the primary GIC.*/for (i = 0; i < NR_GIC_CPU_IF; i++)gic_cpu_map[i] = 0xff;
#ifdef CONFIG_SMPset_smp_cross_call(gic_raise_softirq);//设置SMP核减交互的回调函数，用于IPI
#endifcpuhp_setup_state_nocalls(CPUHP_AP_IRQ_GIC_STARTING,"irqchip/arm/gic:starting",gic_starting_cpu, NULL);set_handle_irq(gic_handle_irq);//设定相关的irq handler，异常处理的入口if (static_branch_likely(&supports_deactivate_key))pr_info("GIC: Using split EOI/Deactivate mode\n");}if (static_branch_likely(&supports_deactivate_key) && gic == &gic_data[0]) {name = kasprintf(GFP_KERNEL, "GICv2");gic_init_chip(gic, NULL, name, true);//初始化gic_chip，如：gic_set_affinity} else {name = kasprintf(GFP_KERNEL, "GIC-%d", (int)(gic-&gic_data[0]));gic_init_chip(gic, NULL, name, false);}ret = gic_init_bases(gic, handle);if (ret)kfree(name);return ret;
}

gic_init_bases函数分析：

static int gic_init_bases(struct gic_chip_data *gic,struct fwnode_handle *handle)
{int gic_irqs, ret;//smp架构时，gic cpu interface是否有影子寄存器if (IS_ENABLED(CONFIG_GIC_NON_BANKED) && gic->percpu_offset) {/* Frankein-GIC without banked registers... */unsigned int cpu;gic->dist_base.percpu_base = alloc_percpu(void __iomem *);gic->cpu_base.percpu_base = alloc_percpu(void __iomem *);if (WARN_ON(!gic->dist_base.percpu_base ||!gic->cpu_base.percpu_base)) {ret = -ENOMEM;goto error;}for_each_possible_cpu(cpu) {u32 mpidr = cpu_logical_map(cpu);u32 core_id = MPIDR_AFFINITY_LEVEL(mpidr, 0);unsigned long offset = gic->percpu_offset * core_id;*per_cpu_ptr(gic->dist_base.percpu_base, cpu) =gic->raw_dist_base + offset;*per_cpu_ptr(gic->cpu_base.percpu_base, cpu) =gic->raw_cpu_base + offset;}gic_set_base_accessor(gic, gic_get_percpu_base);} else {/* Normal, sane GIC... */WARN(gic->percpu_offset,"GIC_NON_BANKED not enabled, ignoring %08x offset!",gic->percpu_offset);gic->dist_base.common_base = gic->raw_dist_base;gic->cpu_base.common_base = gic->raw_cpu_base;gic_set_base_accessor(gic, gic_get_common_base);}/** Find out how many interrupts are supported.* The GIC only supports up to 1020 interrupt sources.*///获取gic最多支持的中断数gic_irqs = readl_relaxed(gic_data_dist_base(gic) + GIC_DIST_CTR) & 0x1f;gic_irqs = (gic_irqs + 1) * 32;if (gic_irqs > 1020)gic_irqs = 1020;gic->gic_irqs = gic_irqs;//注册一个irq domain的数据结构if (handle) {		/* DT/ACPI */gic->domain = irq_domain_create_linear(handle, gic_irqs,&gic_irq_domain_hierarchy_ops,gic);} else {		/* Legacy support *//** For primary GICs, skip over SGIs.* No secondary GIC support whatsoever.*/int irq_base;gic_irqs -= 16; /* calculate # of irqs to allocate */irq_base = irq_alloc_descs(16, 16, gic_irqs,numa_node_id());if (irq_base < 0) {WARN(1, "Cannot allocate irq_descs @ IRQ16, assuming pre-allocated\n");irq_base = 16;}gic->domain = irq_domain_add_legacy(NULL, gic_irqs, irq_base,16, &gic_irq_domain_ops, gic);}if (WARN_ON(!gic->domain)) {ret = -ENODEV;goto error;}gic_dist_init(gic);		//初始化distributorret = gic_cpu_init(gic);//初始化cpu interfaceif (ret)goto error;ret = gic_pm_init(gic);//初始化gic 电源管理if (ret)goto error;return 0;error:if (IS_ENABLED(CONFIG_GIC_NON_BANKED) && gic->percpu_offset) {free_percpu(gic->dist_base.percpu_base);free_percpu(gic->cpu_base.percpu_base);}return ret;
}

gic_dist_init函数分析：

static void gic_dist_init(struct gic_chip_data *gic)
{unsigned int i;u32 cpumask;unsigned int gic_irqs = gic->gic_irqs;void __iomem *base = gic_data_dist_base(gic);writel_relaxed(GICD_DISABLE, base + GIC_DIST_CTRL);/** Set all global interrupts to this CPU only.*/cpumask = gic_get_cpumask(gic);//获取当前cpu的mask值，只需获取低8bitcpumask |= cpumask << 8;cpumask |= cpumask << 16;for (i = 32; i < gic_irqs; i += 4)//将所有SPI中断默认配置到当前CPU的cpu interfacewritel_relaxed(cpumask, base + GIC_DIST_TARGET + i * 4 / 4);gic_dist_config(base, gic_irqs, NULL);//将所有SPI中断默认配置为低电平触发writel_relaxed(GICD_ENABLE, base + GIC_DIST_CTRL);
}

gic_cpu_init函数分析：

static int gic_cpu_init(struct gic_chip_data *gic)
{void __iomem *dist_base = gic_data_dist_base(gic);void __iomem *base = gic_data_cpu_base(gic);unsigned int cpu_mask, cpu = smp_processor_id();int i;/** Setting up the CPU map is only relevant for the primary GIC* because any nested/secondary GICs do not directly interface* with the CPU(s).*/if (gic == &gic_data[0]) {/** Get what the GIC says our CPU mask is.*/if (WARN_ON(cpu >= NR_GIC_CPU_IF))return -EINVAL;gic_check_cpu_features();cpu_mask = gic_get_cpumask(gic);gic_cpu_map[cpu] = cpu_mask;/** Clear our mask from the other map entries in case they're* still undefined.*/for (i = 0; i < NR_GIC_CPU_IF; i++)if (i != cpu)gic_cpu_map[i] &= ~cpu_mask;}gic_cpu_config(dist_base, 32, NULL);//清除所有的PPI中断状态，配置PPI、SPI中断的优先级为0xa0writel_relaxed(GICC_INT_PRI_THRESHOLD, base + GIC_CPU_PRIMASK);gic_cpu_if_up(gic);return 0;
}

数据结构分析

请添加图片描述

GIC驱动中，使用struct gic_chip_data结构体来描述GIC控制器的信息，整个驱动都是围绕着该结构体的初始化，驱动中将函数指针都初始化好，实际的工作是由中断信号触发，也就是在中断来临的时候去进行回调；
struct irq_chip结构，描述的是中断控制器的底层操作函数集，这些函数集最终完成对控制器硬件的操作；
struct irq_domain结构，用于硬件中断号和Linux IRQ中断号（virq，虚拟中断号）之间的映射；

gic_data数据结构分析：

struct gic_chip_data {struct irq_chip chip;union gic_base dist_base;	//GIC Distributor的物理基地址空间union gic_base cpu_base;	//GIC CPU interface的物理基地址空间void __iomem *raw_dist_base;//GIC Distributor的虚拟基地址空间void __iomem *raw_cpu_base; //GIC CPU interface的虚拟基地址空间u32 percpu_offset;
#if defined(CONFIG_CPU_PM) || defined(CONFIG_ARM_GIC_PM)//GIC 电源管理相关的成员u32 saved_spi_enable[DIV_ROUND_UP(1020, 32)];u32 saved_spi_active[DIV_ROUND_UP(1020, 32)];u32 saved_spi_conf[DIV_ROUND_UP(1020, 16)];u32 saved_spi_target[DIV_ROUND_UP(1020, 4)];u32 __percpu *saved_ppi_enable;u32 __percpu *saved_ppi_active;u32 __percpu *saved_ppi_conf;
#endifstruct irq_domain *domain;	//该GIC对应的irq domain数据结构unsigned int gic_irqs;		//GIC支持的IRQ的数目
#ifdef CONFIG_GIC_NON_BANKEDvoid __iomem *(*get_base)(union gic_base *);
#endif
};static struct gic_chip_data gic_data[CONFIG_ARM_GIC_MAX_NR] __read_mostly;

irq_chip数据结构体分析： 用于对中断控制器的硬件操作。

struct irq_chip {struct device	*parent_device;		//指向父设备const char	*name;					// /proc/interrupts中显示的名字unsigned int	(*irq_startup)(struct irq_data *data);//启动中断，如果设置成NULL，则默认为enablevoid		(*irq_shutdown)(struct irq_data *data);	关闭中断，如果设置成NULL，则默认为disablevoid		(*irq_enable)(struct irq_data *data);//中断使能，如果设置成 NULL，则默认为 chip->unmaskvoid		(*irq_disable)(struct irq_data *data);//中断禁止void		(*irq_ack)(struct irq_data *data);//开始新的中断void		(*irq_mask)(struct irq_data *data);//中断源屏蔽void		(*irq_mask_ack)(struct irq_data *data);//应答并屏蔽中断void		(*irq_unmask)(struct irq_data *data);//解除中断屏蔽void		(*irq_eoi)(struct irq_data *data);//中断处理结束后调用int		(*irq_set_affinity)(struct irq_data *data, const struct cpumask *dest, bool force);//在SMP中设置CPU亲和力int		(*irq_retrigger)(struct irq_data *data);//重新发送中断到CPUint		(*irq_set_type)(struct irq_data *data, unsigned int flow_type);//设置中断触发类型int		(*irq_set_wake)(struct irq_data *data, unsigned int on);//使能/禁止电源管理中的唤醒功能void		(*irq_bus_lock)(struct irq_data *data);//慢速芯片总线上的锁void		(*irq_bus_sync_unlock)(struct irq_data *data); //同步释放慢速总线芯片的锁void		(*irq_cpu_online)(struct irq_data *data);void		(*irq_cpu_offline)(struct irq_data *data);void		(*irq_suspend)(struct irq_data *data);void		(*irq_resume)(struct irq_data *data);void		(*irq_pm_shutdown)(struct irq_data *data);void		(*irq_calc_mask)(struct irq_data *data);void		(*irq_print_chip)(struct irq_data *data, struct seq_file *p);int		(*irq_request_resources)(struct irq_data *data);void		(*irq_release_resources)(struct irq_data *data);void		(*irq_compose_msi_msg)(struct irq_data *data, struct msi_msg *msg);void		(*irq_write_msi_msg)(struct irq_data *data, struct msi_msg *msg);int		(*irq_get_irqchip_state)(struct irq_data *data, enum irqchip_irq_state which, bool *state);int		(*irq_set_irqchip_state)(struct irq_data *data, enum irqchip_irq_state which, bool state);int		(*irq_set_vcpu_affinity)(struct irq_data *data, void *vcpu_info);void		(*ipi_send_single)(struct irq_data *data, unsigned int cpu);void		(*ipi_send_mask)(struct irq_data *data, const struct cpumask *dest);int		(*irq_nmi_setup)(struct irq_data *data);void		(*irq_nmi_teardown)(struct irq_data *data);unsigned long	flags;
};

irq_domain数据结构体分析： 与中断控制器对应，完成硬件中断号 hwirq 到 virq 的映射。

struct irq_domain {struct list_head link;	//用于添加到全局链表irq_domain_list中const char *name;		//IRQ domain的名字const struct irq_domain_ops *ops;//IRQ domain映射操作函数集void *host_data;		//在GIC驱动中，指向了irq_gic_dataunsigned int flags;unsigned int mapcount;	//映射中断的个数/* Optional data */struct fwnode_handle *fwnode;对应中断控制器的 device nodeenum irq_domain_bus_token bus_token;struct irq_domain_chip_generic *gc;
#ifdef	CONFIG_IRQ_DOMAIN_HIERARCHYstruct irq_domain *parent;//指向父级 irq_domain 的指针，用于支持级联 irq_domain
#endif
#ifdef CONFIG_GENERIC_IRQ_DEBUGFSstruct dentry		*debugfs_file;
#endif/* reverse map data. The linear map gets appended to the irq_domain */irq_hw_number_t hwirq_max;//IRQ domain支持中断数量的最大值unsigned int revmap_direct_max_irq;unsigned int revmap_size;//线性映射的大小struct radix_tree_root revmap_tree;//Radix Tree映射的根节点struct mutex revmap_tree_mutex;unsigned int linear_revmap[];//线性映射用到的查找表
};

irq_domain_ops数据结构体分析： irq_domain 映射操作函数集

struct irq_domain_ops {// 用于中断控制器设备与IRQ domain的匹配int (*match)(struct irq_domain *d, struct device_node *node,enum irq_domain_bus_token bus_token);int (*select)(struct irq_domain *d, struct irq_fwspec *fwspec,enum irq_domain_bus_token bus_token);//用于硬件中断号与Linux中断号的映射int (*map)(struct irq_domain *d, unsigned int virq, irq_hw_number_t hw);void (*unmap)(struct irq_domain *d, unsigned int virq);//通过device_node，解析硬件中断号和触发方式int (*xlate)(struct irq_domain *d, struct device_node *node,const u32 *intspec, unsigned int intsize,unsigned long *out_hwirq, unsigned int *out_type);#ifdef	CONFIG_IRQ_DOMAIN_HIERARCHY/* extended V2 interfaces to support hierarchy irq_domains */int (*alloc)(struct irq_domain *d, unsigned int virq,unsigned int nr_irqs, void *arg);void (*free)(struct irq_domain *d, unsigned int virq,unsigned int nr_irqs);int (*activate)(struct irq_domain *d, struct irq_data *irqd, bool reserve);void (*deactivate)(struct irq_domain *d, struct irq_data *irq_data);int (*translate)(struct irq_domain *d, struct irq_fwspec *fwspec,unsigned long *out_hwirq, unsigned int *out_type);
#endif
#ifdef CONFIG_GENERIC_IRQ_DEBUGFSvoid (*debug_show)(struct seq_file *m, struct irq_domain *d,struct irq_data *irqd, int ind);
#endif
};

irq_desc数据结构体分析： 描述一个外设的中断，称之中断描述符

struct irq_desc {struct irq_common_data	irq_common_data;struct irq_data		irq_data;		//中断控制器的硬件数据unsigned int __percpu	*kstat_irqs;irq_flow_handler_t	handle_irq;		//中断控制器驱动的处理函数，指向一个 struct irqaction 的链表
#ifdef CONFIG_IRQ_PREFLOW_FASTEOIirq_preflow_handler_t	preflow_handler;
#endifstruct irqaction	*action;	/* IRQ action list *///设备驱动的处理函数unsigned int		status_use_accessors;unsigned int		core_internal_state__do_not_mess_with_it;unsigned int		depth;		/* nested irq disables */unsigned int		wake_depth;	/* nested wake enables */unsigned int		tot_count;unsigned int		irq_count;	/* For detecting broken IRQs */unsigned long		last_unhandled;	/* Aging timer for unhandled count */unsigned int		irqs_unhandled;atomic_t		threads_handled;int			threads_handled_last;raw_spinlock_t		lock;struct cpumask		*percpu_enabled;const struct cpumask	*percpu_affinity;
#ifdef CONFIG_SMPconst struct cpumask	*affinity_hint;struct irq_affinity_notify *affinity_notify;
#ifdef CONFIG_GENERIC_PENDING_IRQcpumask_var_t		pending_mask;
#endif
#endifunsigned long		threads_oneshot;atomic_t		threads_active;wait_queue_head_t       wait_for_threads;
#ifdef CONFIG_PM_SLEEPunsigned int		nr_actions;unsigned int		no_suspend_depth;unsigned int		cond_suspend_depth;unsigned int		force_resume_depth;
#endif
#ifdef CONFIG_PROC_FSstruct proc_dir_entry	*dir;
#endif
#ifdef CONFIG_GENERIC_IRQ_DEBUGFSstruct dentry		*debugfs_file;const char		*dev_name;
#endif
#ifdef CONFIG_SPARSE_IRQstruct rcu_head		rcu;struct kobject		kobj;
#endifstruct mutex		request_mutex;int			parent_irq;struct module		*owner;const char		*name;
} ____cacheline_internodealigned_in_smp;

irq_data数据结构体分析： 包含中断控制器的硬件数据

struct irq_data {u32			mask;unsigned int		irq;	//虚拟中断号unsigned long		hwirq;	//硬件中断号struct irq_common_data	*common;struct irq_chip		*chip;	//对应的irq_chip数据结构struct irq_domain	*domain;//对应的irq_domain数据结构
#ifdef	CONFIG_IRQ_DOMAIN_HIERARCHYstruct irq_data		*parent_data;
#endifvoid			*chip_data;
};

请添加图片描述
上面的结构体 struct irq_desc 是设备驱动加载的过程中完成的，让设备树中的中断能与具体的中断描述符 irq_desc 匹配，其中 struct irqaction 保存着设备的中断处理函数。右边框内的结构体主要是在中断控制器驱动加载的过程中完成的，其中 struct irq_chip 用于对中断控制器的硬件操作，struct irq_domain 用于硬件中断号到 Linux irq 的映射。
注：以上内容出自：
1）吐血整理|肝翻Linux中断所有知识点
2）Linux中断子系统（一）—中断控制器及驱动分析

irq domain浅析

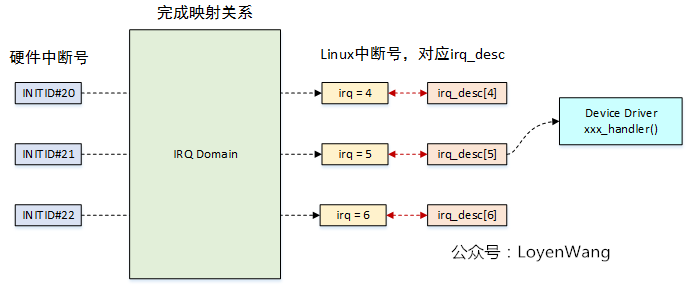

IRQ domain用于将硬件的中断号，转换成Linux系统中的中断号（virtual irq, virq），如下图：
请添加图片描述

每个中断控制器都对应一个IRQ Domain；
中断控制器驱动通过irq_domain_add_*()接口来创建IRQ Domain；
IRQ Domain支持三种映射方式：linear map（线性映射），tree map（树映射），no map（不映射）；

1）linear map：维护固定大小的表，索引是硬件中断号，如果硬件中断最大数量固定，并且数值不大，可以选择线性映射；
2）tree map：硬件中断号可能很大，可以选择树映射；
3）no map：硬件中断号直接就是Linux的中断号；

三种映射的方式如下图：
请添加图片描述

图中描述了三个中断控制器，对应到三种不同的映射方式；
各个控制器的硬件中断号可以一样，最终在Linux内核中映射的中断号是唯一的；

linux内核中，所有的irq domain被挂入一个全局链表，链表头定义如下：

static LIST_HEAD(irq_domain_list);

注册irq_domain

线性映射（line map）

其实就是一个lookup table，HW interrupt ID作为index，通过查表可以获取对应的IRQ number。对于Linear map而言，interrupt controller对其HW interrupt ID进行编码的时候要满足一定的条件：hw ID不能过大，而且ID排列最好是紧密的。对于线性映射，其接口API如下：

/*** irq_domain_add_linear() - Allocate and register a linear revmap irq_domain.* @of_node: pointer to interrupt controller's device tree node.* @size: Number of interrupts in the domain.* @ops: map/unmap domain callbacks* @host_data: Controller private data pointer*/
static inline struct irq_domain *irq_domain_add_linear(struct device_node *of_node,unsigned int size,//该irq_domain支持的irq数目const struct irq_domain_ops *ops,//callback函数void *host_data)//driver私有数据
{return __irq_domain_add(of_node_to_fwnode(of_node), size, size, 0, ops, host_data);
}

树状映射（tree map）

建立一个Radix Tree来维护HW interrupt ID到IRQ number映射关系。HW interrupt ID作为lookup key，在Radix Tree检索到IRQ number。如果的确不能满足线性映射的条件，可以考虑Radix Tree map。实际上，内核中使用Radix Tree map的只有powerPC和MIPS的硬件平台。对于Radix Tree map，其接口API如下：

static inline struct irq_domain *irq_domain_add_tree(struct device_node *of_node,const struct irq_domain_ops *ops,void *host_data)
{return __irq_domain_add(of_node_to_fwnode(of_node), 0, ~0, 0, ops, host_data);
}

no map

有些中断控制器很强，可以通过寄存器配置HW interrupt ID而不是由物理连接决定的。例如PowerPC 系统使用的MPIC (Multi-Processor Interrupt Controller)。在这种情况下，不需要进行映射，我们直接把IRQ number写入HW interrupt ID配置寄存器就OK了，这时候，生成的HW interrupt ID就是IRQ number，也就不需要进行mapping了。对于这种类型的映射，其接口API如下：

static inline struct irq_domain *irq_domain_add_nomap(struct device_node *of_node,unsigned int max_irq,const struct irq_domain_ops *ops,void *host_data)
{return __irq_domain_add(of_node_to_fwnode(of_node), 0, max_irq, max_irq, ops, host_data);
}

这类接口的逻辑很简单，根据自己的映射类型，初始化struct irq_domain中的各个成员，调用__irq_domain_add将该irq domain挂入irq_domain_list的全局列表。

创建irq_domain映射

上节的内容主要是向系统注册一个irq domain，具体HW interrupt ID和IRQ number的映射关系都是空的，因此，具体各个irq domain如何管理映射所需要的database还是需要建立的。例如：对于线性映射的irq domain，我们需要建立线性映射的lookup table，对于Radix Tree map，我们要把那个反应IRQ number和HW interrupt ID的Radix tree建立起来。创建映射有四个接口函数：

（1）调用irq_create_mapping函数建立HW interrupt ID和IRQ number的映射关系。该接口函数以irq domain和HW interrupt ID为参数，返回IRQ number（这个IRQ number是动态分配的）。该函数的原型定义如下：

/*** irq_create_mapping() - Map a hardware interrupt into linux irq space* @domain: domain owning this hardware interrupt or NULL for default domain* @hwirq: hardware irq number in that domain space** Only one mapping per hardware interrupt is permitted. Returns a linux* irq number.* If the sense/trigger is to be specified, set_irq_type() should be called* on the number returned from that call.*/
unsigned int irq_create_mapping(struct irq_domain *domain,irq_hw_number_t hwirq)；

驱动调用该函数的时候必须提供HW interrupt ID，也就是意味着driver知道自己使用的HW interrupt ID，而一般情况下，HW interrupt ID其实对具体的driver应该是不可见的，不过有些场景比较特殊，例如GPIO类型的中断，它的HW interrupt ID和GPIO有着特定的关系，driver知道自己使用那个GPIO，也就是知道使用哪一个HW interrupt ID了。

（2）irq_create_strict_mappings。这个接口函数用来为一组HW interrupt ID建立映射。具体函数的原型定义如下：

extern int irq_create_strict_mappings(struct irq_domain *domain,unsigned int irq_base,irq_hw_number_t hwirq_base, int count);

（3）irq_create_of_mapping。看到函数名字中的of（open firmware），我想你也可以猜到了几分，这个接口当然是利用device tree进行映射关系的建立。具体函数的原型定义如下：

extern unsigned int irq_create_of_mapping(struct of_phandle_args *irq_data);

通常，一个普通设备的device tree node已经描述了足够的中断信息，在这种情况下，该设备的驱动在初始化的时候可以调用irq_of_parse_and_map这个接口函数进行该device node中和中断相关的内容（interrupts和interrupt-parent属性）进行分析，并建立映射关系，具体代码如下：

/*** irq_of_parse_and_map - Parse and map an interrupt into linux virq space* @dev: Device node of the device whose interrupt is to be mapped* @index: Index of the interrupt to map** This function is a wrapper that chains of_irq_parse_one() and* irq_create_of_mapping() to make things easier to callers*/
unsigned int irq_of_parse_and_map(struct device_node *dev, int index)
{struct of_phandle_args oirq;if (of_irq_parse_one(dev, index, &oirq))    //分析device node中的interrupt相关属性return 0;return irq_create_of_mapping(&oirq);    //创建映射，并返回对应的IRQ number
}
EXPORT_SYMBOL_GPL(irq_of_parse_and_map);

对于一个使用Device tree的普通驱动程序（我们推荐这样做），基本上初始化需要调用irq_of_parse_and_map获取IRQ number，然后调用request_threaded_irq申请中断handler。

（4）irq_create_direct_mapping。这是给no map那种类型的interrupt controller使用的，这里不再赘述。

gic创建irq_domain

static int gic_init_bases(struct gic_chip_data *gic,struct fwnode_handle *handle)
{int gic_irqs, ret;....../** Find out how many interrupts are supported.* The GIC only supports up to 1020 interrupt sources.*///获取gic最多支持的中断数gic_irqs = readl_relaxed(gic_data_dist_base(gic) + GIC_DIST_CTR) & 0x1f;gic_irqs = (gic_irqs + 1) * 32;if (gic_irqs > 1020)gic_irqs = 1020;gic->gic_irqs = gic_irqs;//注册一个irq domain的数据结构if (handle) {		/* DT/ACPI */gic->domain = irq_domain_create_linear(handle, gic_irqs,&gic_irq_domain_hierarchy_ops,gic);} else {		/* Legacy support *//** For primary GICs, skip over SGIs.* No secondary GIC support whatsoever.*/int irq_base;gic_irqs -= 16; /* calculate # of irqs to allocate */irq_base = irq_alloc_descs(16, 16, gic_irqs,numa_node_id());if (irq_base < 0) {WARN(1, "Cannot allocate irq_descs @ IRQ16, assuming pre-allocated\n");irq_base = 16;}gic->domain = irq_domain_add_legacy(NULL, gic_irqs, irq_base,16, &gic_irq_domain_ops, gic);}......return 0;error:if (IS_ENABLED(CONFIG_GIC_NON_BANKED) && gic->percpu_offset) {free_percpu(gic->dist_base.percpu_base);free_percpu(gic->cpu_base.percpu_base);}return ret;
}


/*** __irq_domain_add() - Allocate a new irq_domain data structure* @fwnode: firmware node for the interrupt controller* @size: Size of linear map; 0 for radix mapping only* @hwirq_max: Maximum number of interrupts supported by controller* @direct_max: Maximum value of direct maps; Use ~0 for no limit; 0 for no*              direct mapping* @ops: domain callbacks* @host_data: Controller private data pointer** Allocates and initializes an irq_domain structure.* Returns pointer to IRQ domain, or NULL on failure.*/
struct irq_domain *__irq_domain_add(struct fwnode_handle *fwnode, int size,irq_hw_number_t hwirq_max, int direct_max,const struct irq_domain_ops *ops,void *host_data)
{struct device_node *of_node = to_of_node(fwnode);struct irqchip_fwid *fwid;struct irq_domain *domain;static atomic_t unknown_domains;domain = kzalloc_node(sizeof(*domain) + (sizeof(unsigned int) * size),GFP_KERNEL, of_node_to_nid(of_node));if (!domain)return NULL;if (fwnode && is_fwnode_irqchip(fwnode)) {fwid = container_of(fwnode, struct irqchip_fwid, fwnode);switch (fwid->type) {case IRQCHIP_FWNODE_NAMED:case IRQCHIP_FWNODE_NAMED_ID:domain->fwnode = fwnode;domain->name = kstrdup(fwid->name, GFP_KERNEL);if (!domain->name) {kfree(domain);return NULL;}domain->flags |= IRQ_DOMAIN_NAME_ALLOCATED;break;default:domain->fwnode = fwnode;domain->name = fwid->name;break;}
#ifdef CONFIG_ACPI} else if (is_acpi_device_node(fwnode)) {struct acpi_buffer buf = {.length = ACPI_ALLOCATE_BUFFER,};acpi_handle handle;handle = acpi_device_handle(to_acpi_device_node(fwnode));if (acpi_get_name(handle, ACPI_FULL_PATHNAME, &buf) == AE_OK) {domain->name = buf.pointer;domain->flags |= IRQ_DOMAIN_NAME_ALLOCATED;}domain->fwnode = fwnode;
#endif} else if (of_node) {char *name;/** DT paths contain '/', which debugfs is legitimately* unhappy about. Replace them with ':', which does* the trick and is not as offensive as '\'...*/name = kasprintf(GFP_KERNEL, "%pOF", of_node);if (!name) {kfree(domain);return NULL;}strreplace(name, '/', ':');domain->name = name;domain->fwnode = fwnode;domain->flags |= IRQ_DOMAIN_NAME_ALLOCATED;}if (!domain->name) {if (fwnode)pr_err("Invalid fwnode type for irqdomain\n");domain->name = kasprintf(GFP_KERNEL, "unknown-%d",atomic_inc_return(&unknown_domains));if (!domain->name) {kfree(domain);return NULL;}domain->flags |= IRQ_DOMAIN_NAME_ALLOCATED;}of_node_get(of_node);/* Fill structure */INIT_RADIX_TREE(&domain->revmap_tree, GFP_KERNEL);mutex_init(&domain->revmap_tree_mutex);/* 初始化 domain */domain->ops = ops;domain->host_data = host_data;domain->hwirq_max = hwirq_max;domain->revmap_size = size;domain->revmap_direct_max_irq = direct_max;irq_domain_check_hierarchy(domain);mutex_lock(&irq_domain_mutex);debugfs_add_domain_dir(domain);list_add(&domain->link, &irq_domain_list);//将domain添加到irq_domain_list中mutex_unlock(&irq_domain_mutex);pr_debug("Added domain %s\n", domain->name);return domain;
}

gic_irq_domain_hierarchy_ops定义：

static const struct irq_domain_ops gic_irq_domain_hierarchy_ops = {.translate = gic_irq_domain_translate,.alloc = gic_irq_domain_alloc,.free = irq_domain_free_irqs_top,
};

gic创建irq_chip

static void gic_init_chip(struct gic_chip_data *gic, struct device *dev,const char *name, bool use_eoimode1)
{/* Initialize irq_chip */gic->chip = gic_chip;gic->chip.name = name;gic->chip.parent_device = dev;if (use_eoimode1) {gic->chip.irq_mask = gic_eoimode1_mask_irq;gic->chip.irq_eoi = gic_eoimode1_eoi_irq;gic->chip.irq_set_vcpu_affinity = gic_irq_set_vcpu_affinity;}#ifdef CONFIG_SMPif (gic == &gic_data[0])gic->chip.irq_set_affinity = gic_set_affinity;
#endif
}

gic_eoimode1_mask_irq分析：

static void gic_eoimode1_mask_irq(struct irq_data *d)
{gic_mask_irq(d);/** When masking a forwarded interrupt, make sure it is* deactivated as well.** This ensures that an interrupt that is getting* disabled/masked will not get "stuck", because there is* noone to deactivate it (guest is being terminated).*/if (irqd_is_forwarded_to_vcpu(d))gic_poke_irq(d, GIC_DIST_ACTIVE_CLEAR);
}

gic_eoimode1_eoi_irq分析：

static void gic_eoimode1_eoi_irq(struct irq_data *d)
{/* Do not deactivate an IRQ forwarded to a vcpu. */if (irqd_is_forwarded_to_vcpu(d))return;writel_relaxed(gic_irq(d), gic_cpu_base(d) + GIC_CPU_DEACTIVATE);
}

gic_irq_set_vcpu_affinity分析：

static int gic_irq_set_vcpu_affinity(struct irq_data *d, void *vcpu)
{/* Only interrupts on the primary GIC can be forwarded to a vcpu. */if (cascading_gic_irq(d))return -EINVAL;if (vcpu)irqd_set_forwarded_to_vcpu(d);elseirqd_clr_forwarded_to_vcpu(d);return 0;
}

gic_set_affinity分析：

static int gic_set_affinity(struct irq_data *d, const struct cpumask *mask_val,bool force)
{void __iomem *reg = gic_dist_base(d) + GIC_DIST_TARGET + gic_irq(d);unsigned int cpu;if (!force)cpu = cpumask_any_and(mask_val, cpu_online_mask);elsecpu = cpumask_first(mask_val);if (cpu >= NR_GIC_CPU_IF || cpu >= nr_cpu_ids)return -EINVAL;writeb_relaxed(gic_cpu_map[cpu], reg);irq_data_update_effective_affinity(d, cpumask_of(cpu));return IRQ_SET_MASK_OK_DONE;
}
